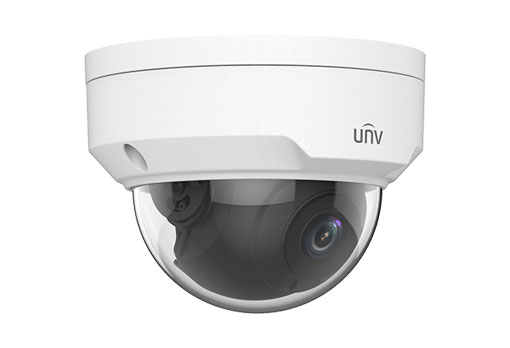

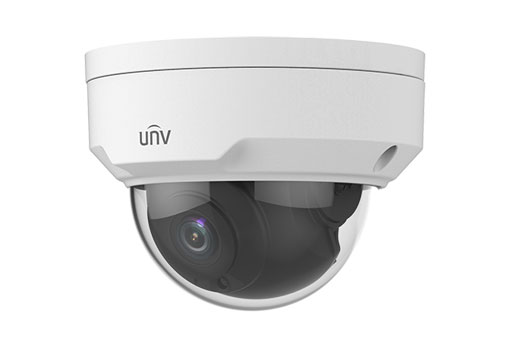

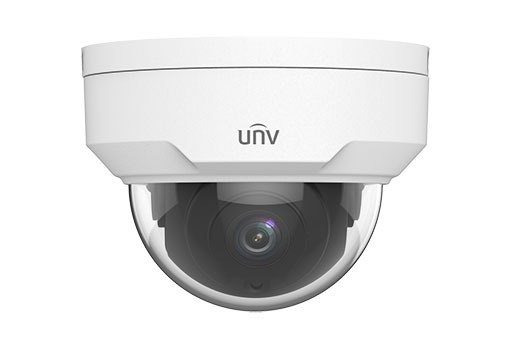

4MP Vandal-Resistant Network IR Fixed Dome IP Security Camera

Description

• • • Optics

       Day/night functionality

       Smart IR, up to 30 m (98 ft) IR distance

       2D/3D DNR (Digital Noise Reduction)

      Compression

       Ultra 265,H.265, H.264, MJPEG

       Triple streams

       ROI (Region of Interest)

      Network

       ONVIF Conformance

      Structure

       Wide temperature range: -30°C to 60°C (-22°F to 140°F)

       Wide voltage range of ±25%

       IK10 vandal resistant

       IP67

       2-Axis

      	IPC324LR3-VSPF28-D
      Camera
      Sensor	1/3″, progressive scan, 4.0 megapixel, CMOS
      Lens	2.8mm@F2.0
      DORI Distance	Lens (mm)	Detect (m)	Observe (m)		Recognize (m)	Identify (m)
      	2.80	63.00	25.20		12.60	6.30
      	4.00	90.00	36.00		18.00	9.00
      Angle of View (H)	104.4°
      Angle of View (V)	54.4°
      Angle of View (O)	135.7°
      Adjustment angle	Pan 0° ~ 360°			Tilt: 0° ~ 75°
      Shutter	Auto/Manual, 1 ~ 1/100000s
      Minimum Illumination	Colour: 0.03Lux (F2.0, AGC ON)
      	0Lux with IR
      Day/Night	IR-cut filter with auto switch (ICR)
      Digital noise reduction	2D/3D DNR
      S/N	>52dB
      IR Range	Up to 30m (98ft) IR range
      Wavelength	850nm
      IR On/Off Control	Auto/Manual
      Defog	Digital Defog
      WDR	DWDR
      Video
      Video Compression	Ultra 265, H.265, H.264, MJPEG
      H.264 code profile	Baseline profile, Main Profile
      Frame Rate	Main Stream: 4MP (2592*1520), Max 20fps;
      	Sub Stream: 720P (1280*720), Max 20fps;
      	Third Stream: D1 (720*576), Max 20fps
      Video Bit Rate	128 Kbps~16 Mbps
      OSD	Up to 4 OSDs
      Privacy Mask	Up to 4 areas
      ROI	Up to 2 areas
      Motion Detection	Up to 4 areas
      White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
      Digital noise reduction	2D/3D DNR
      Smart IR	Support
      Flip	Normal/Vertical/Horizontal/180°
      Dewarping	NA
      HLC	Supported
      BLC	Supported
      Network
      Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
      Compatible Integration	ONVIF (Profile S, Profile T), API
      Client	EZStation
      	EZView
      	EZLive
      Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
      	Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
      Interface
      Network	1 RJ45 100M Base-TX Ethernet
      Certifications
      Certifications	CE: EN 60950-1
      	UL: UL60950-1
      	FCC: FCC Part 15
      General
      Power	DC 12V±25%, PoE (IEEE 802.3af)
      	Power consumption: Max 4W
      Dimensions (Ø x H)	Φ109 x 81mm (Ø4.3” x 3.2”)
      Net Weight	0.45kg (0.99lb)
      Material	Metal + Plastic
      Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
      Strorage Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
      Surge Protection	2KV
      Ingress Protection	IP67
      Vandal Resistant	IK10
